Stepper Motors

Difficulty: intermediateTime: 45mPrereqs: Understanding Servo Motors, Using Potentiometers

Stepper motors can be used to produce motion in small steps. This allows us to program stepper motors to make very precise movements and this is why stepper motors are often used in 3D printers and robotic arms.

How it works​

A stepper motor works by converting electrical pulses into motion by using multiple coils. Unlike servo motors, a stepper motor cannot be connected directly to your Arduino board. This is because it requires more voltage that the Arduino can provide.

To avoid this, we have to use a motor driver module such as the ULN2003 driver board. This driver allows us to construct our circuit with easy and provide power to our stepper motor.

Constructing your circuit​

Components required:

  • 1x Stepper motor eg. 28BYJ-48
  • 1x ULN2003 driver module
  • 1x External power supply - we will be working with a power supply module
  • Breadboard
  • Jumper wires (both male-male and female-male)
  • Arduino board
Try it yourself

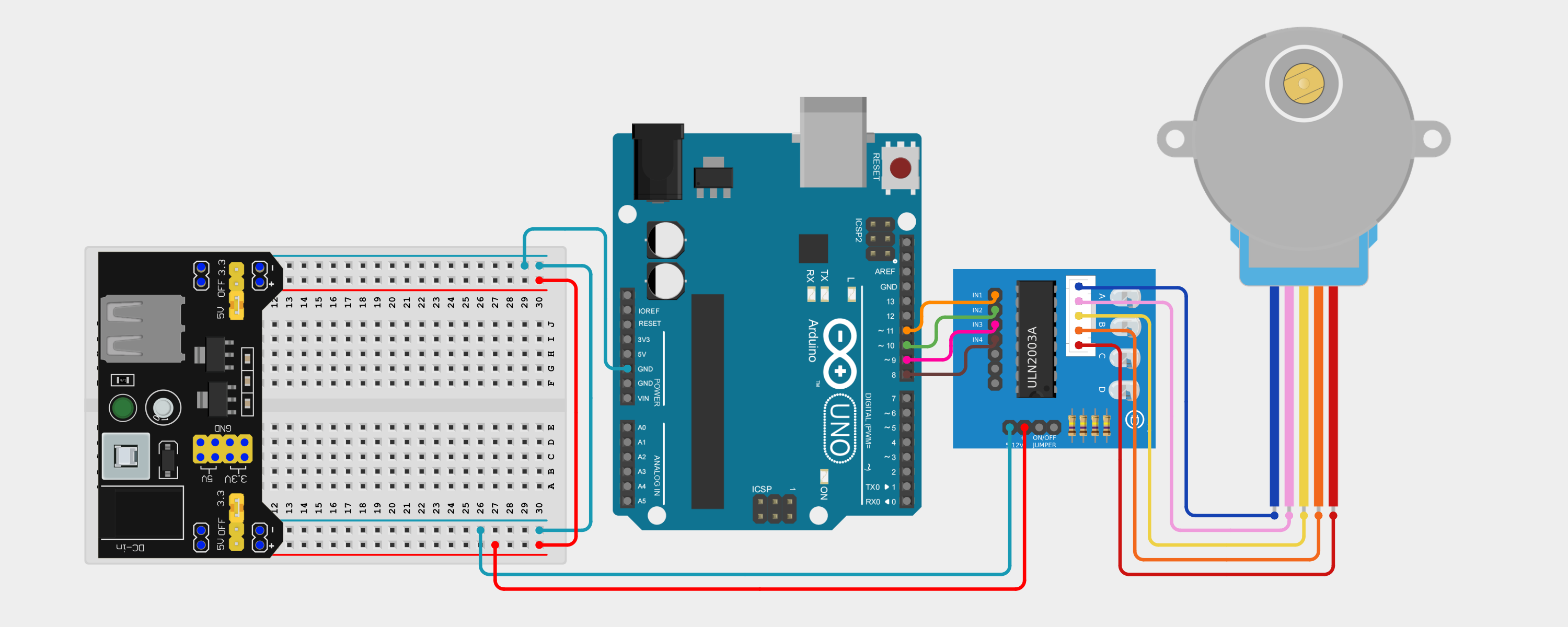

Search up your servo motor's datasheet and pinout online. Then, try to build your circuit on the breadboard. You can use this layout to help:

  • Connect your stepper motor to your motor driver
  • Motor driver (ULN2003) connections to Arduino
    • IN1 → Pin 11
    • IN2 → Pin 10
    • IN3 → Pin 9
    • IN4 → Pin 8
    • VCC → Breadboard 5V rail
    • GND → Breadboard GND rail
  • Connect your power supply module to your breadboard, ensuring that the positive and negative terminals are in line with your breadboard's power rails.

Programming your stepper motor​

As with the servo motor, to control and program our stepper motor, we have to interface with the Stepper library. We can include the library in our sketch using #include <Stepper.h> at the very top of our program.

A stepper motor moves in small increments. The 28BYJ-48 motor, when used with the ULN2003 driver, typically needs 2048 steps to complete one full rotation.

#define STEPS_PER_REV 2048

Also, we have to tell the Arduino which pins are connected to the driver’s inputs. The order of the pins matters — follow the sequence exactly as wired in the circuit section.

Stepper myStepper(STEPS_PER_REV, 11, 9, 10, 8);

We can then use the setSpeed() and the step() functions to make our stepper motor rotate. The completed example sketch is as follows:

#include <Stepper.h>

#define STEPS_PER_REV 2048

Stepper myStepper(STEPS_PER_REV, 11, 9, 10, 8);

void setup() {
  myStepper.setSpeed(10); // 10 RPM
}

void loop() {
  myStepper.step(1024);  // Half rotation forward
  delay(1000);           // Wait 1 second
  myStepper.step(-1024); // Half rotation backward
  delay(1000);           // Wait 1 second
}

Assignment​

Your Turn
  1. Connect a potentiometer to an analog input pin. Map the potentiometer value to a range between -2048 and 2048 steps using the map() function we learned about earlier. Move the stepper motor accordingly.

Next Steps​

This section includes links to help you dive deeper into the topics from this lesson. It's optional, so don't worry if you choose to skip it.
